BWYF - GXCW - DC intelligent fluorescent reflection type optical fiber temperature sensor, according to the actual application process of the specific situation, through the concentration of research and a lot of experiments, from the principle and structure of the sensor probe and directional coupler innovation and improvement of the successful development of new products. The sensor probe uses the principle of composite reflection not only to achieve a greater range of linearity, and the structure is more simple and firm, to achieve the miniaturization, installation is more convenient. Directional coupler structure more compact, more stable work, directional coupling degree increased by more than 15dB, so that the system sensitivity and reliability greatly improved.

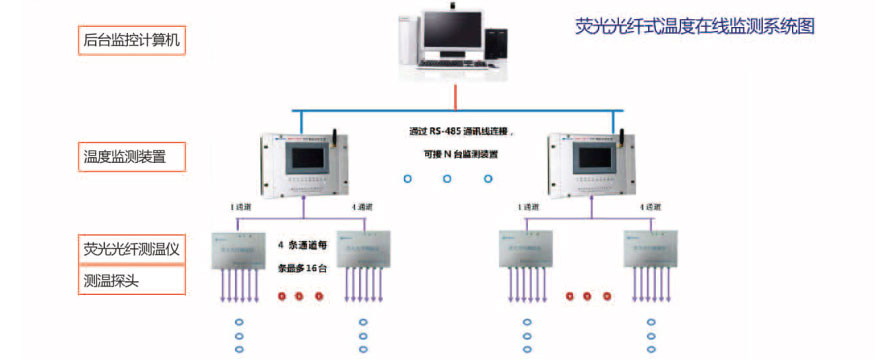

BWYF GXCW optical fiber temperature measurement monitoring device, for our company's intelligent optical fiber temperature measurement data monitoring and display device, with 4 485 bus interface, each interface can take 10 optical fiber temperature sensors. Multi-channel dry contact alarm output function. The panel includes touch screen display, ship switch, etc.

The software platform adopts the small kernel operating system designed by ourselves for the device platform. Because it is customized, it shows the characteristics of high efficiency and stable operation, and fully ensures the high reliability of the software system.

Technical parameters

● Rated power supply voltage: AC185 ~ 265V/DC110 ~ 375V;

● Temperature display range: -25 ~ 125℃; Humidity display range: 0 ~ 99%RH;

● Alarm output contact power: AC220V/I5A;

Communication mode: RS485, MODBUS communication protocol. Rs232-rj45 interface, ICE61850 communication protocol

● Data transmission: GPRS

● Host: full load, not more than 20W; Temperature measuring module: no more than 5W when fully loaded.

● Ambient temperature:

Work: -20~ +70℃.

Storage: -25~ +85℃, relative humidity is not more than 80%, the surrounding air does not contain acid, alkaline or other corrosive and explosive gas rain proof, snow proof indoor; Under the limit value, no amount of excitation is applied, the device does not appear irreversible change, and the device should work normally after the temperature is restored.

Atmospheric pressure: 80 ~ 110kPa (relative altitude below 2km).

Range of application

● High voltage isolating switch for substation.

● High voltage switchgear inlet and outlet bus contact temperature detection.

● High voltage contact temperature detection in power plant.

● User substation (high voltage contact temperature detection.

● GIS combination switch.

Sensor characteristics

Super small integrated design, easy to install and debug interface, small size of temperature sensing probe.

● 485 bus output digital temperature signal, can be installed separately, can be installed in multiple modules network. Lightning protection design meets the requirements of industrial environment.

● Product power supply voltage dc 5V, a single sensor power consumption of 70mA, with over voltage, over current protection function.

Characteristics of monitoring device

● Enhanced unit chassis, easy to install on various cabinets, according to the strong vibration, strong interference design, to ensure that the device is installed in bad conditions of the site still have high reliability.

● 485 communication mode, MODBUS protocol, RS232-RJ45 Ethernet interface, ICE61850 protocol.

● 4-channel 485 bus interface, each channel carries up to 40 optical fiber temperature sensors. 4 channels alarm output dry node.

Device dimensions and opening dimensions
